Mbus Rs485 Gprs Gsm Smart Water Meter Brass Body Automated Water Meter
Premium Products
Mbus Rs485 Gprs Gsm Smart Water Meter Brass Body Automated Water Meter
1
2
3
4
5
6
warranty :1 year
customized support :OEM
Place of Origin :Henan, China
Brand Name :Shengda
Model Number :LXSY-15-300E
Flow Rate :2.5m3/h
Measurement Range :DN15-40
type :Multi-jet meters
material :Brass
Connectivity :Threaded
Protection Class :ip68
product name :Mbus rs485 gprs gsm smart water meter brass body automated water meter
Size :DN15~DN300mm
Protection class :IP65
Communication :RS485
Standard :ISO9001
Certificate :CE, ISO, MID, etc.
Core :RS485/MBus, modbus/188 protocol
Connection :Thread
Color :Blue
Material :Brass Body
Contact Now
Mbus rs485 gprs gsm smart water meter brass body automated water meter
RS485-MODBUS water meter wiring method:
Red - power supply
Black - Ground
White (yellow) - RS485+
Blue (green) - RS485-

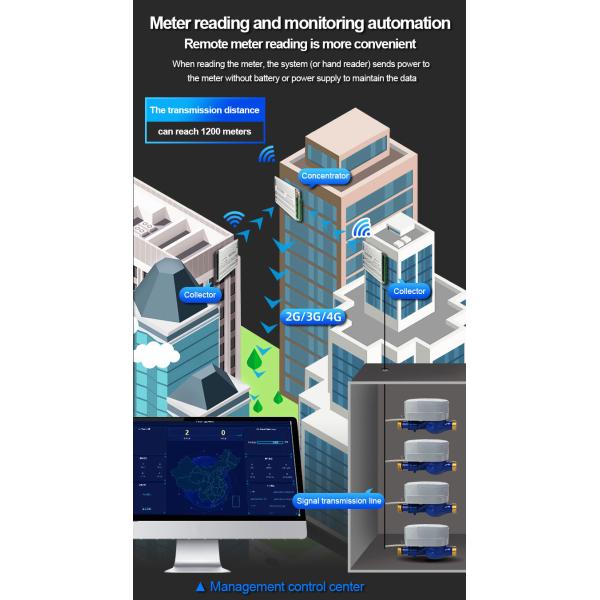

RS485 MODBUS water meter Features: 1. Meet the "electronic remote meter" (CJ / T224-2012) standards; 2. Usually no power, powers by the bus power supply only when meter reading / switching valve, data acquisition, data transmission or valve control according to the requirements of the command; 3. The meter has a unique address identifier, according to the address can read the corresponding data to ensure data uniqueness, correctness; 4. Control function, comes with the valve, according to the need to switch to prevent malicious arrears of water charge; 5. Combine with the host computer system, established remote automatic meter reading management system, really realized meter reading, monitoring automation.
Product specification:
Dial
Dry
Temperature
T30/T50/T90
Water pressure
0.03-1MPa
Pressure loss
≤0.063MPa
Work voltage
RS485 mode: 12V/24V; M-BUS mode: 36V
Current
Quiescent current: ≤0.6mA; Work current: ≤1.5mA
Transmission distance
1200M
Communication rate
1200bps-9600bps
Communication protocol
DL/645; MODBUS; CJ/T188
Work environment
0.1℃-60℃; Humidity: ≤95%RH
Ordering precautions: The smart water meter includes built-in batteries. Before placing an order, please communicate the details with the business manager. Please do not place order directly on the platform, as the smart product requires checking the specific product details and selecting a special channel freight forwarder for transportation.
The lead time on the website is inaccurate. Please communicate with our business manager to confirm the exact time.
Welcome to inquire us!
